Road Way High Powder Coating Square Post 4.0mm Anti Climb Security Fencing 76.2x12.7mm Hole

Product Categories
Hebei Giant Metal Technology co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Road Way High Powder Coating Square Post 4.0mm Anti Climb Security Fencing 76.2x12.7mm Hole

  • 1
  • 2

Brand Name : Giant Fence

Model Number : Security 358 Fencing

Certification : ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015

Place of Origin : Hebei, China

MOQ : 50sets

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000meter per week

Delivery Time : 18-21days

Packaging Details : 1.panel with pallet and post bulk 2.panel and post all packing with pallet

Wire Diameter : 4.0mm

Hole Size : 76.2*12.7mm

Material : Low Carbon Iron Wire

Color : Grey

Package : Pallet

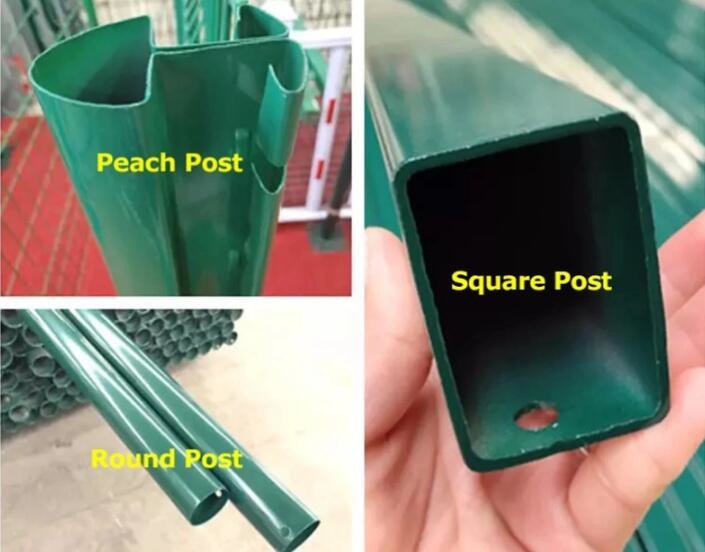

Post Type : Square post

Feature : Anti-climbing

Application : School,Jail,Airport

High Light : security fencing panels

Contact Now

Barbed Wire Mesh High Security 358 Railway Station Fence

358 Fencing Detail

•'358' comes from its measurements 3" x 0.5" x 8 gauges which equates to approx. 76.2mm x 12.7mm x 4mm (Length x height x Diameter) in metric.
•358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools.
•358 fences are recognized as one of the most difficult breakthrough barriers, because it is difficult to climb. It is called security fencing and high- strength fencing.
•358 security fencing panel can be bent in part to enhance the aesthetic effect.
358 Fencing Specification
Panel –Type A
Mesh Wire Diameter

Surface

Treatment

Panel

Width

 Panel Height

76.2x12.7mm

75.0x12.5mm

Horizontal Wire: 3.0, 3.5, 4.0mm

Vertical Wire:

4.0mm

Electric Galvanized + powder/PVC coated

or

hot dipped galvanized

 2.2m or 2.5m

1800mm

2000mm

2100mm

2200mm

2400mm

2500mm

3000mm

Note: Welded Strength – 75% of the minimum tensile strength of the wire;

Tensile Range: 540-690N/m2

Feature

  1. Anti-climbing: more small openings, no toe or finger holds.
  2. Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
  3. High strength welded at each intersection.
  4. Durable: covering Galfan and polymer powder coating ensure a long service life.
  5. Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.

Packing terms

Fence Panels:

1> it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels

2> it has 4 metal corners to keep the pallet more strong.

3> it has metal plate under the plastic bandage to reduce the apressure of fence panels.

4> it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.

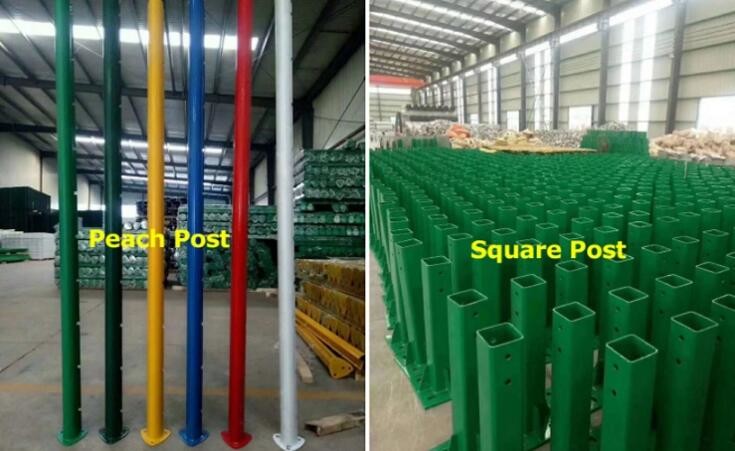

Fence Post:

Each fence post is covered by cap (save your installing time and cost of labor) then with plastic film, then metal pallet.

Road Way High Powder Coating Square Post 4.0mm Anti Climb Security Fencing 76.2x12.7mm HoleRoad Way High Powder Coating Square Post 4.0mm Anti Climb Security Fencing 76.2x12.7mm Hole

Accessories:

Clips and screws are packed by sets, plastic film + carton box.

Road Way High Powder Coating Square Post 4.0mm Anti Climb Security Fencing 76.2x12.7mm Hole

Road Way High Powder Coating Square Post 4.0mm Anti Climb Security Fencing 76.2x12.7mm Hole
